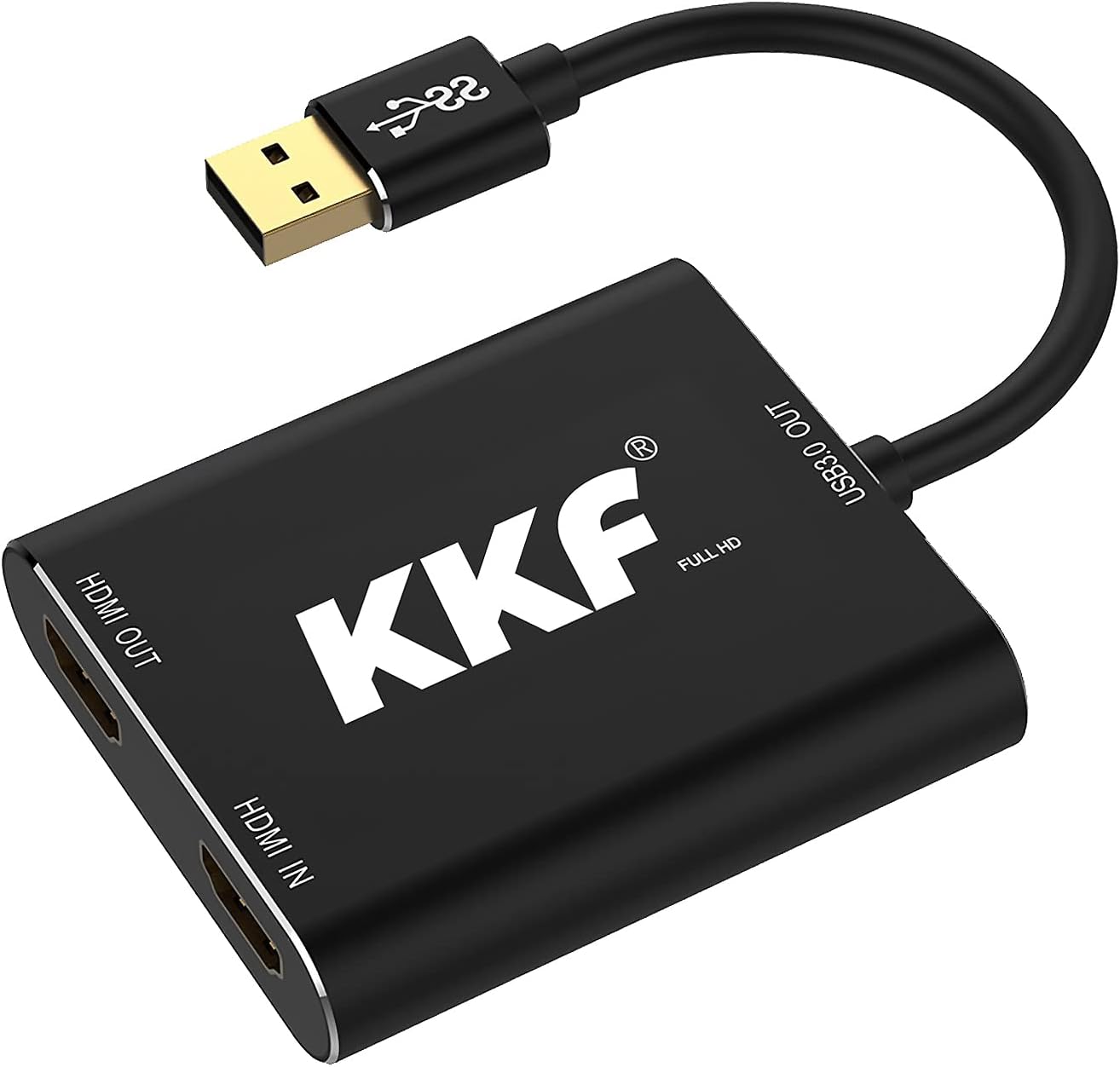

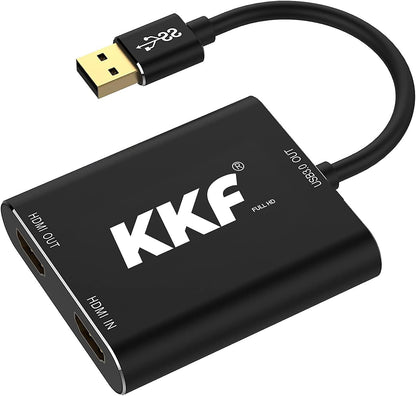

KKF 4K HDMI Capture Card, 1080P 60FPS Video Capture Card for Streaming and Recording of PS5, PS4, Xbox Series X/S, Nintendo Switch via DSLR OBS with HD Ultra-Low Latency (USB A 3.0)

Brand: Kkf
Hardware Interface: USB 3.0 Type A
Video Capture Resolution: 1080p
Operating System: (function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-3:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-3'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); OS X (10.8 and above), Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64), Linux (based on V4L2 , supports x86, x64 & arm architecture)OS X (10.8 and above), Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64), Linux (based on V4L2 , supports x86, x64 & arm architecture) See more
Recommended Uses For Product: Video Recording

Input: PS5, PS4, Xbox Series X/S, Xbox One, Nintendo Switch (unencrypted HDMI)

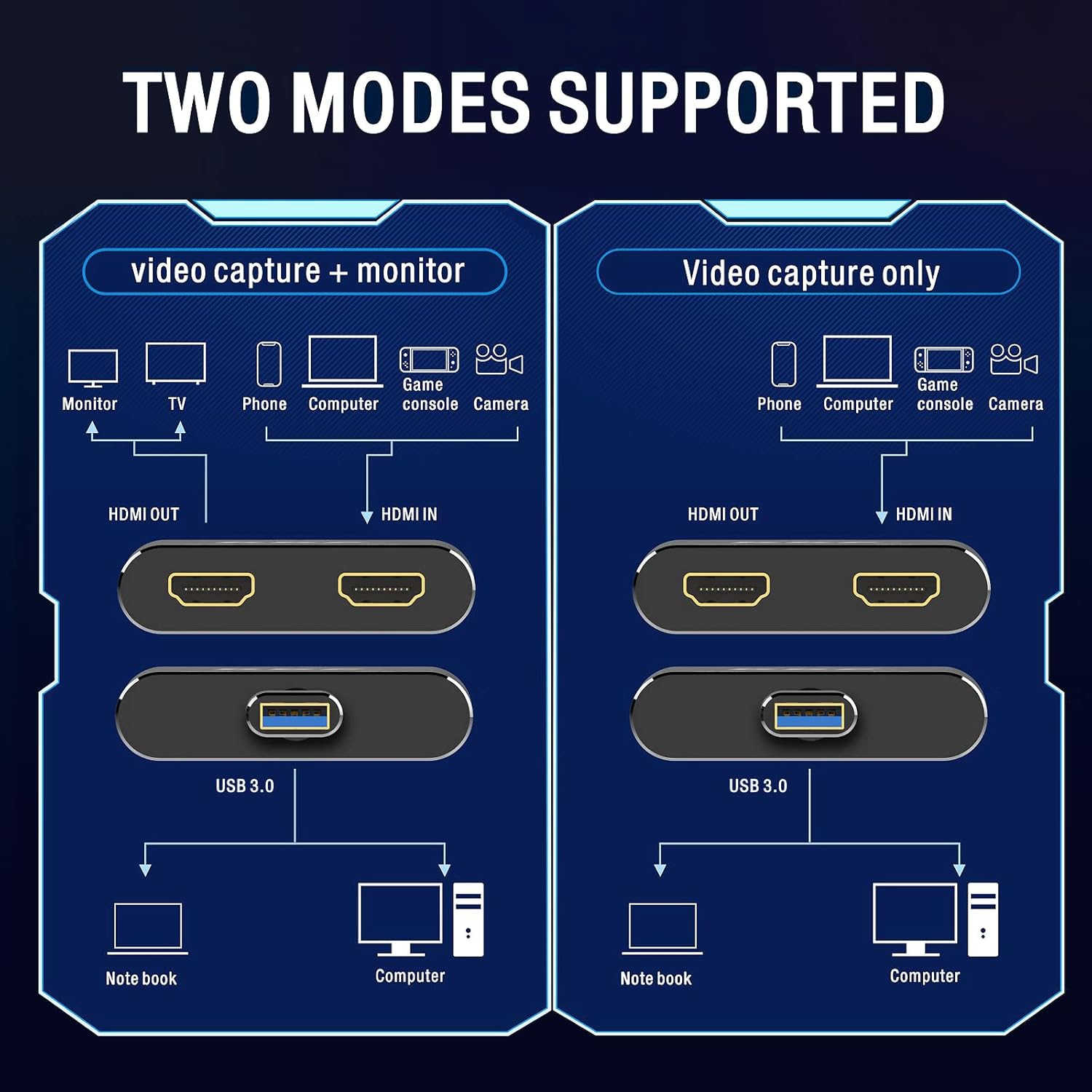

Output: HDMI (lag-free pass-through) up to 1080p60
Supported resolutions: 1080p60, 1080p30, 1080i, 720p60, 720p30, 576p, 576i, 480p
[High-speed transmission] This capture card has a USB 3.0 type C interface, which can give you extremely fast transmission to enjoy, if you want to record the wonderful moments in the game, do not worry about encountering lag
[Service and Warranty] If you experience problems with audio, picture quality, etc., please send me a message at Amazon and I'll do my best to take care of it for you! We offer a 12-month warranty and will take care of it for you online 24 hours a day

Why we need a capture card?

A capture card is an indispensable tool for recording game footage on your console.But why exactly is that?

KKF Capture Card Features:

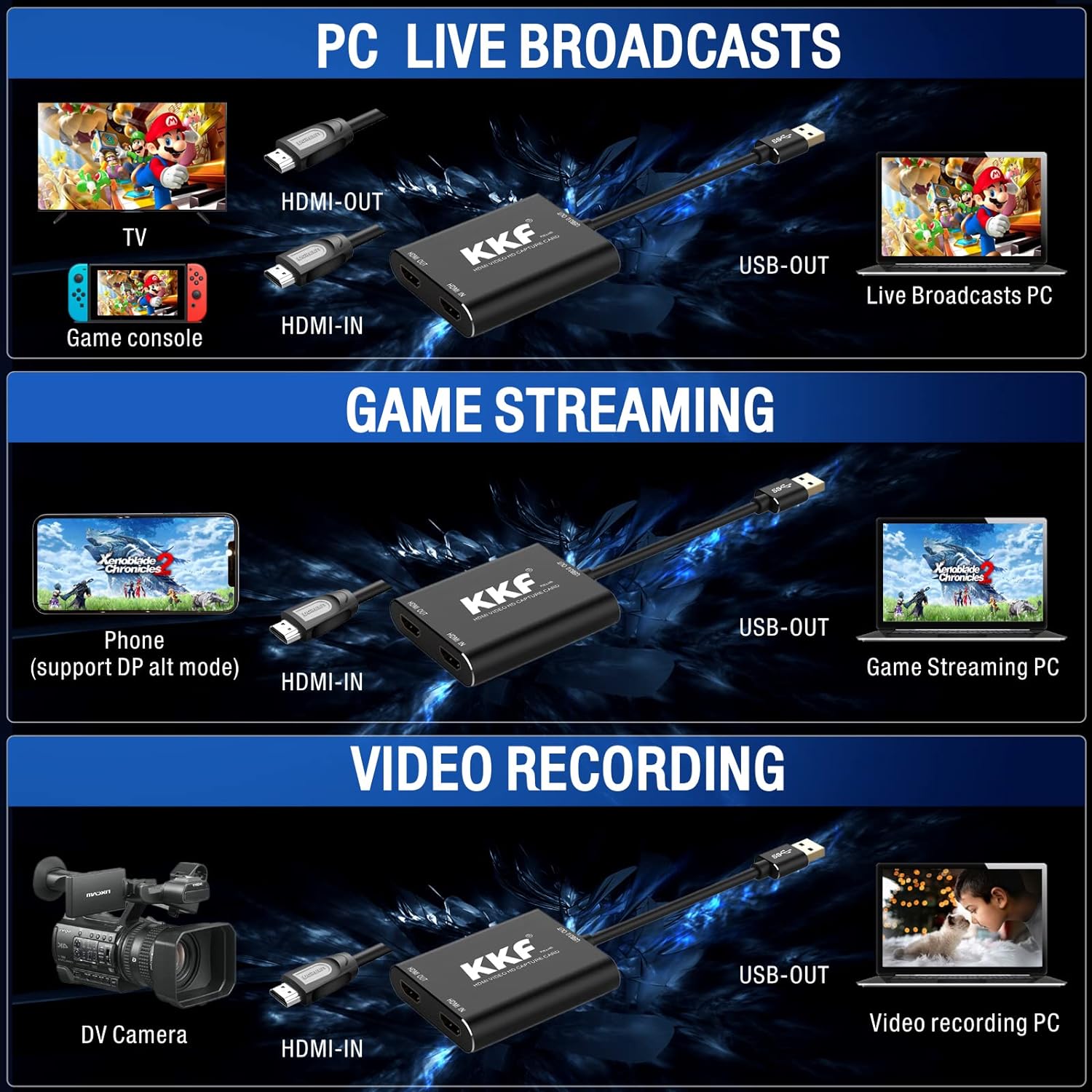

What can a KKF capture card do?

HDMI Input:

一、CTA-861 Timing

1920x1080p@60/59.94/50/30/29.97/25/24/23.98，1920x1080i@60/59.94/50，1280x720p@60/59.94/50/30/29.97/25/24/23.98，720x576p@50，720x480p@60/59.94，640x480p@60/59.94

二、VESA DMT Timing

1600x1200p@60，1400x1050p(RB)@60，1280x1024p@60，1280x960p@60，1600x900p(RB)@60，1440x900p(RB)@60，1280x800p(RB)@60

1360x768p@60，1280x768p(RB)@60，1024x768p@60，800x600p@60，640x480p@60

UVC Output:

一、NV12/I420

1920x1080@120and below frame rate，1280x720@120 and below frame rate，720x576@50and below frame rate，720X480@60 and below frame rate，640x480@60 and below frame rate

二、YUY2

1920x1080@60 and below frame rate，1280x1024@60and below frame rate，1280x720@120and below frame rate，720X480@60 and below frame rate，640x480@120and below frame rate

三、MJPG

1920x1080@120and below frame rate，1280x720@120 and below frame rate，1280x1024@60 and below frame rate，720X480@60 and below frame rate，640x480@120 and below frame rate
